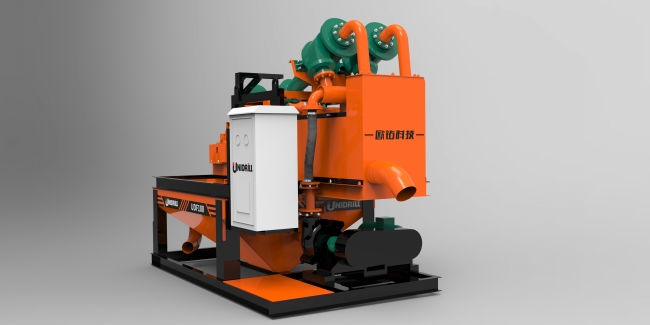

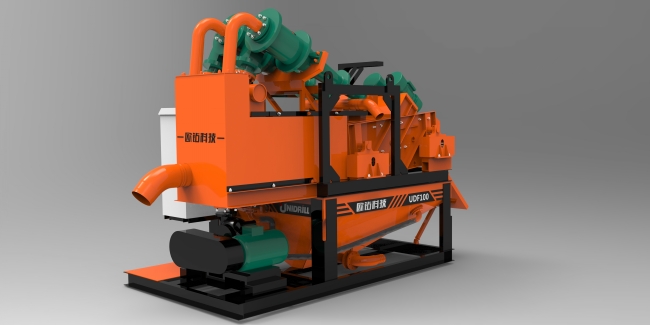

UDF DESANDER

Advantage of Beijing Unidrill drilling tools

Unidrill SRF series desanders, self-developed by Beijing Unidrill Technical Co., ltd., mainly used to recycle the slurry essence in piling constructions of circulation& counterflush drilling and shied constructions of slurry balanced, can decrease the slurry discharge, cut tool-sticking accidents, and improve the drilling efficiency. Double screen mesh was adopted in filter system to improve working efficiency by 50% compared with the traditional single mesh one. Meanwhile, our desander has the properties of simple operation, easy maintenance as well as outstanding cleaning and purifying ability, long service life and high reliability.

MODEL

Type	UDF100	UDF150	UDF200	UDF250
Slurry treatment capacity/ m³/h	100	150	200	250
ID. of Cyclone /mm	Φ250	Φ250	Φ500	Φ500
Qty. of Cyclone	2	2	1	1
Median cut point/μm	40	40	70	70
Slurry Pump power/ kw	22	30	45	55
Sieve Vibrating Motors	1kw x 2	1kw x 2	1.5kw x 2	1.5kw x 2
Pump motor/ kw	24	32	48	58
lower coarse Sieve
Sieve panal size/ mm	610x610x45	610x610x45	800x650x45	800x650x45
Mesh size/ mm	2	2	3	3
Sieve panal Qty.	2	2	3	3
upper fine sieve
Sieve panal size/ mm	610x610x45	610x610x45	800x575x45	800x575x45
Mesh size/mm	0.2	0.2	0.4	0.4
Sieve panal Qty.	2	2	3	3
Material	Polyurethane	Polyurethane	Polyurethane	Polyurethane
Inlet Dia./inch	4	4	6	6
outlet Dia./inch	8	8	10	10
transportation Dimensions/ mm	3350x2000x2800	3350x2000x2800	3550x2300x2950	3550x2300x2950
Weight/ t	2.4	2.8	4.6	5.3

Type :	UDF DESANDERS
MANUFACTURER & BRAND :	UNIDRILL
ORIGIN :	CHINA
CONTRACT MANUFACTURING ?	YES WE DO
